Flexible OLED Curved Lamination Machine

LMY-D19P OCA Lamination Machine

Cavity structure is well sealed, imported high-power vacuum pump, 5 seconds of ultimate vacuum, lamination exempted from air bubbles.Fast operation efficiency.
Alignment is simple and high precision, accuracy can be controlled within ± 0.1mm, curved screen rework processing industry Can reduce the dependence on skilled labor.
Highly accurate temperature controller, big brand PLC control unit, big brand servo motor.
Airbag soft laminating, uniform force, beautiful laminating effect, no wrinkles, strong versatility.

InquiryDownloadVideo

Share to

Detailed

Manufacturer: Lamione	Model: LMY-D19P	Lamination Size: below 7 inches
Lamination precision: ±0.1mm	Lamination capacity: 80~90 pcs/h	Lamination temperature: 25~60°C
Lamination pressure: ≤0.6Mpa	Recipe quantity: pre-stored 50 sets of alignment	Formulation lamination mode: cylinder + airbag
Equipment power: 850W	Machine weight: 280KG	Equipment size: 10006301800mm

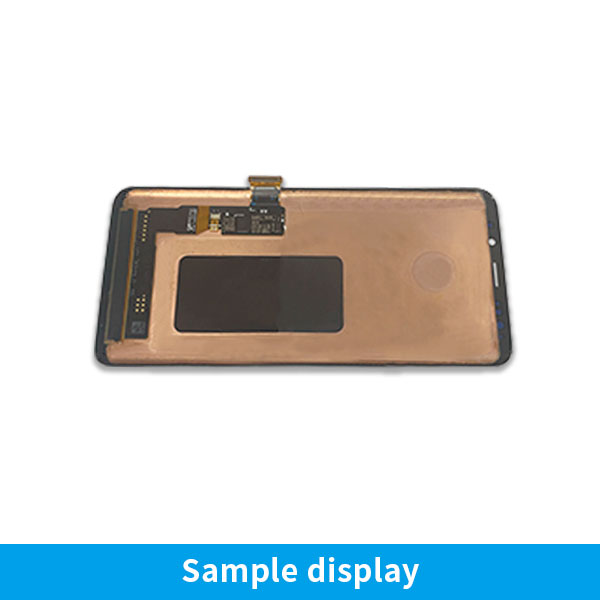

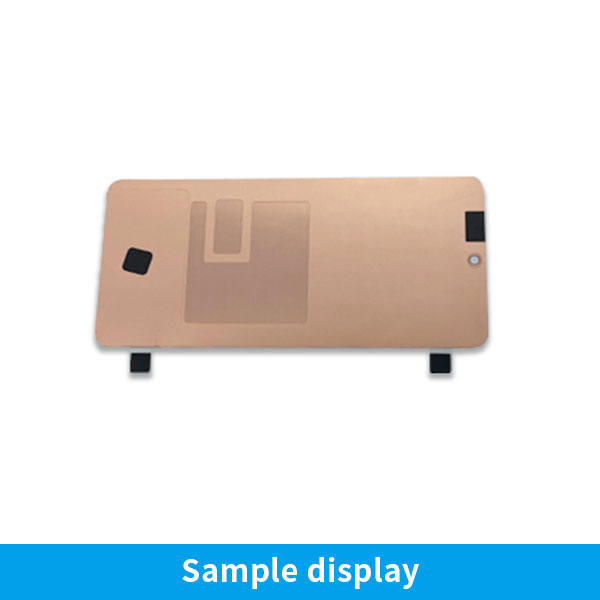

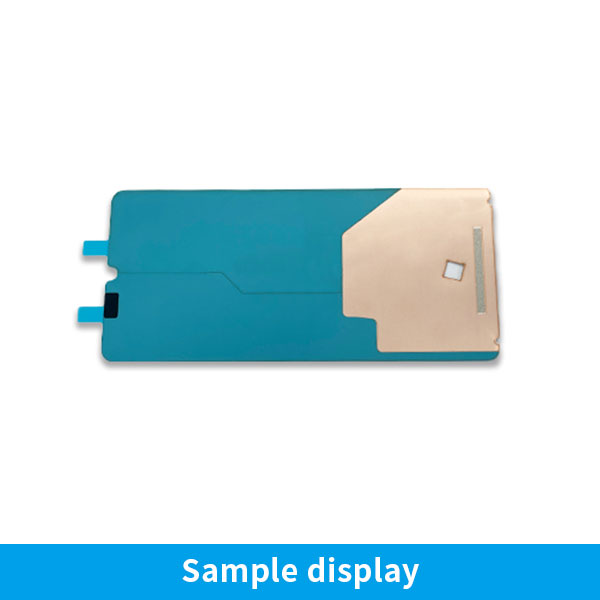

D19P scope of application: lamination OLED module of cell phone below 7 inches, OCA dry adhesive on glass CG, back sticker on module, OLED curved module lamination.
