LMY-D49P CCD Dual station Lamination Machine

LMY-D49P CCD Dual station Lamination Machine

4

3

2

1
LMY-D49P CCD Dual station Lamination Machine
Adopt CCD vision single camera alignment, alignment accuracy within ±0.05mm.
Dual-station lamination  warehouse, lamination capacity 150~200pcs per hour, high production efficiency.
Professional 1:1 lamination  fixture development, no folds and bubbles.
One-minute model switching, high versatility.
Efficient dust-free control system, reduce the dust spot inside the machine, improve the lamination yield.
InquiryDownloadVideo
Share to
Detailed

Manufacturer: Lamione

Model: LMY-D49P

Lamination Size: below 7 inches

Lamination  precision: ±0.05mm

Lamination  capacity: 150~200pcs/h

Lamination  temperature: 25~60°C

Lamination  pressure: ≤0.55Mpa

Recipe quantity: pre-stored 50 sets of alignment

Formulation lamination mode: CCD pre-positioning + cylinder

Equipment power: 2000W

Machine weight: 700KG

Equipment size:  1600*800*1600mm

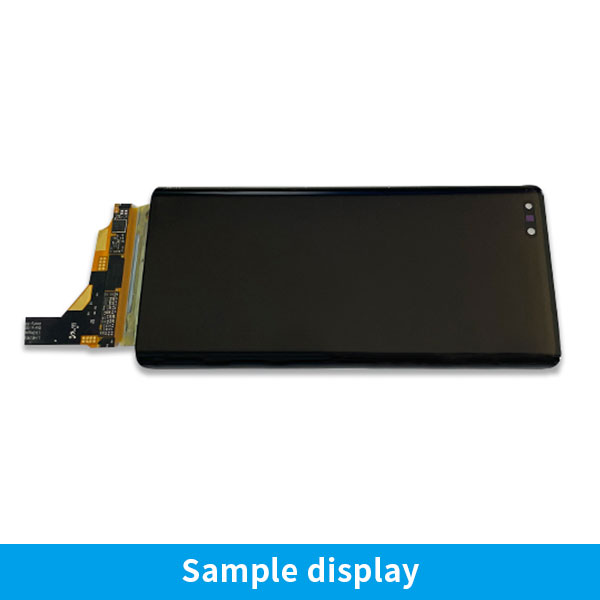

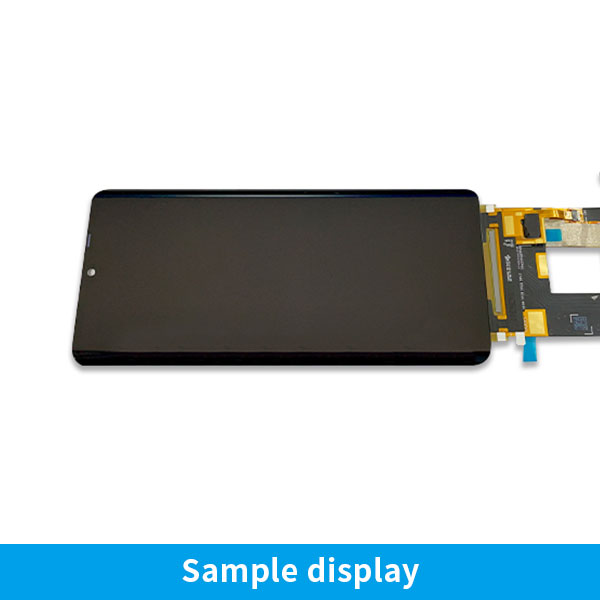

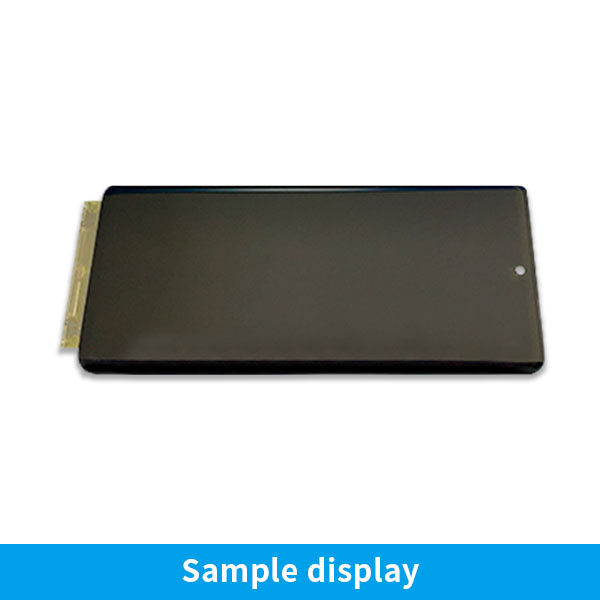

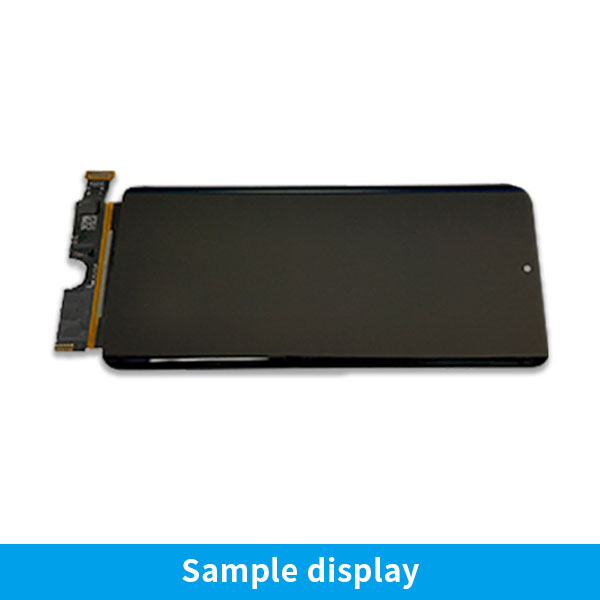

D49P scope of application: 1.Flexible OLED straight screen lamination 2.Flexible OLED curved screen lamination 3.Curved OLED return to modify the screen lamination
