CCD vision four camera alignment, alignment accuracy within ±0.05mm.
Three-station Lamination warehouse, Lamination capacity 300~360pcs per hour, high production efficiency.
Professional 1:1 Lamination fixture development, no folds and bubbles.
One-minute model switching, strong versatility.
Efficient dust-free control system reduces the dust spots inside the machine and improves the Lamination yield.
Big brand servo motors and motion control units ensure stable machine operation.
Accurate lamination, no bubble return, solve the pain point of curved screen industry.
|
Manufacturer: Lamione |
Model: LMY-CD9 |
Lamination Size: below 7 inches |
|
Lamination precision: ±0.05mm |
Lamination capacity: 300~360pcs/h |
Lamination temperature: 25~60°C |
|
Lamination pressure: ≤0.55Mpa |
Recipe quantity: pre-stored 50 sets of alignment |
Formulation lamination mode: CCD pre-positioning + cylinder |
|
Equipment power: 3500W |
Machine weight: 900KG |
Equipment size: 2900*1000*1900mm |
|

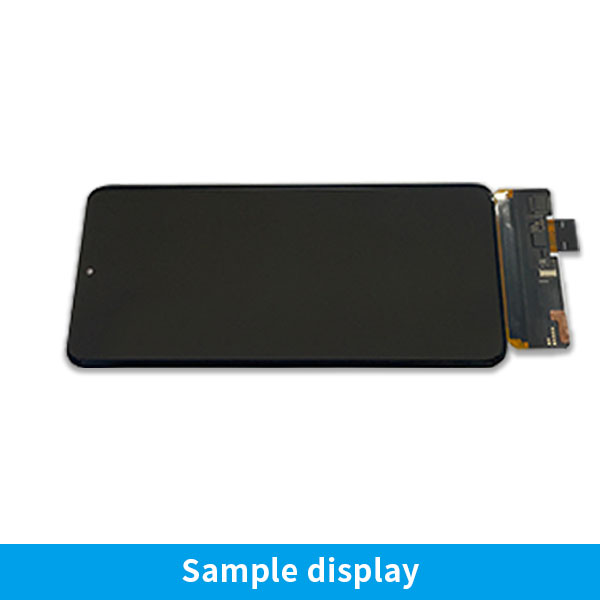

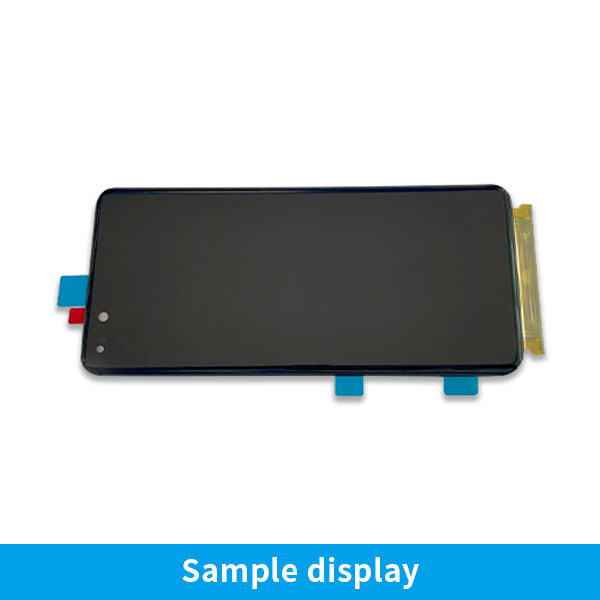

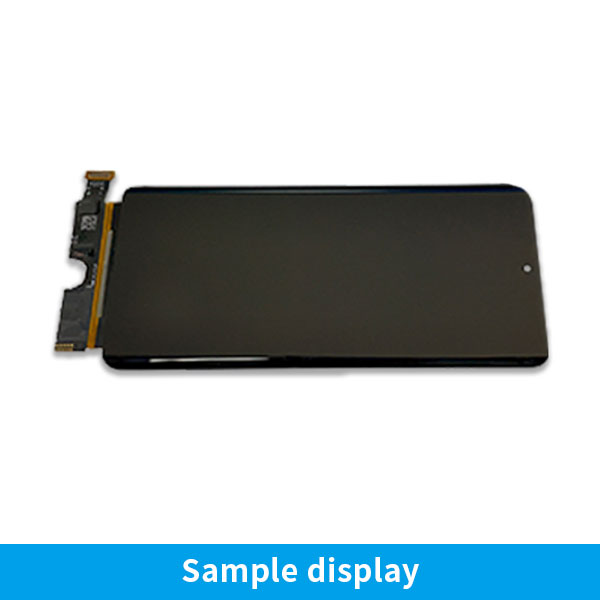

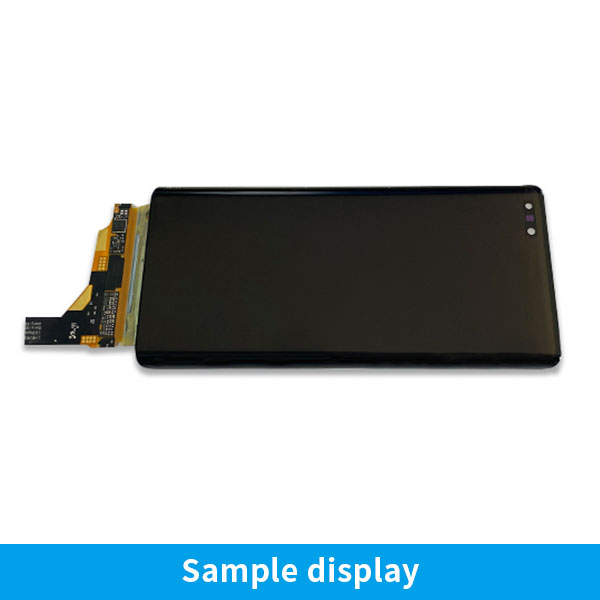

CD9 scope of application: 1.Flexible OLED straight screen lamination 2.Flexible OLED curved screen lamination 3.Curved OLED return to modify the screen lamination |
||
