Automatic loading and unloading of copper foil, automatic tearing of film and discharge of waste.
Single operator feeding, Lamination capacity 300~400pcs per hour, easy to switch models.
CCD visual alignment, alignment accuracy ±0.05mm.
Support the subsequent upgrading of the splicing line, support the merger into the back section of the automatic paste small auxiliary automatic line.
|
Manufacturer: Lamione |
Model: LMY-CP29 |
Lamination Size: below 7 inches |
|
Lamination precision: ±0.05mm |
Lamination capacity: 300~400pcs/h |
Lamination temperature: 25~60°C |
|
Lamination pressure: ≤0.55Mpa |
Recipe quantity: pre-stored 50 sets of alignment |
Formulation lamination mode: CCD pre-positioning + cylinder |
|
Equipment power: 2500W |
Machine weight: 900KG |
Equipment size: 2100*1100*1860mm |
|

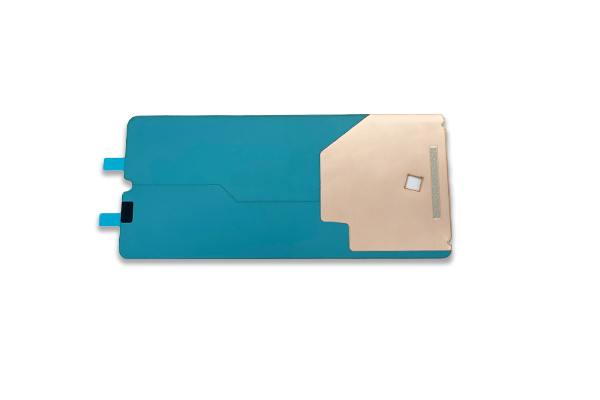

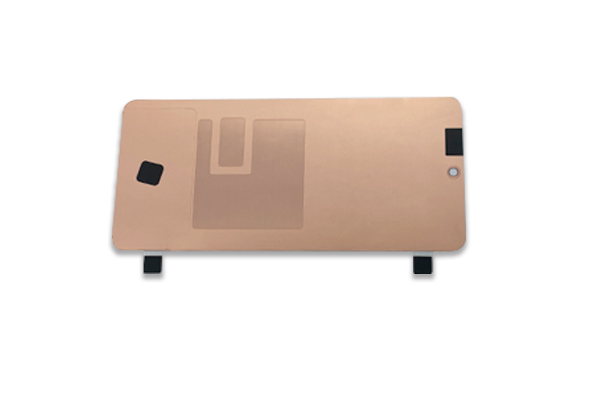

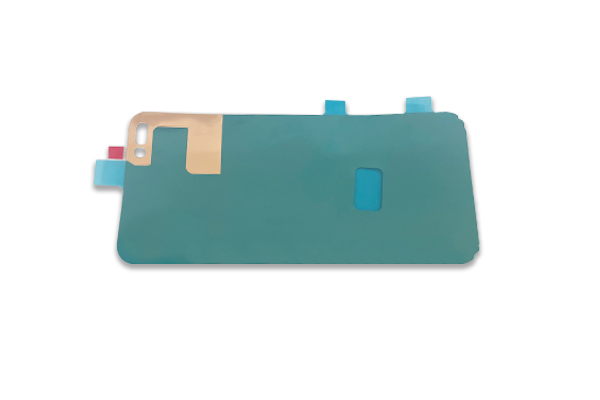

CP29 scope of application: Cell Phone Back Lamination |
||
