Automatic loading and unloading of cover plate, automatic cleaning of cover plate, automatic film tearing.
The entire process is in a fully enclosed environment, with a production yield rate of ≥99%.
Single-person operation, fully automatic lamination.
CCD visual OCA lamination, lamination accuracy ±0.05mm.
Reduces manual contact with materials and lowers the dust point rate.
The production capacity is 300 to 400PCS per hour, and it is convenient to replace models.
|
Manufacturer: Lamione |
Model: LMY-M39 |
Lamination Size: below 7 inches |
|
Lamination precision: ±0.05mm |
Lamination capacity: 300~400pcs/h |
Lamination temperature: 25~60°C |
|
Lamination pressure: ≤0.55Mpa |
Recipe quantity: pre-stored 50 sets of alignment |
Formulation lamination mode: OCA visual roll-on + FOP visual pre-posting + cylinder vacuum posting |
|
Equipment power: 8500W |
Machine weight: 4000KG |
Equipment size: 5662*1640*1612mm |
|

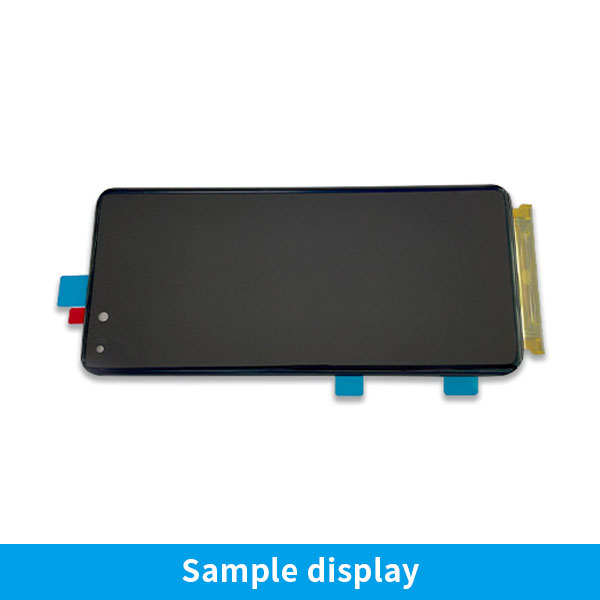

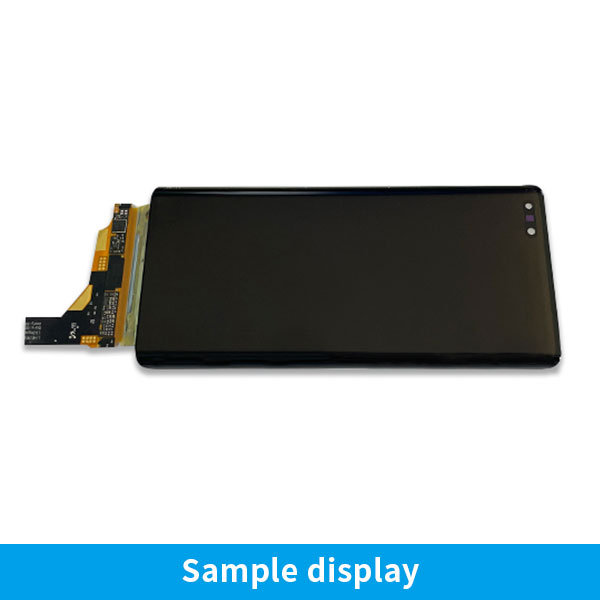

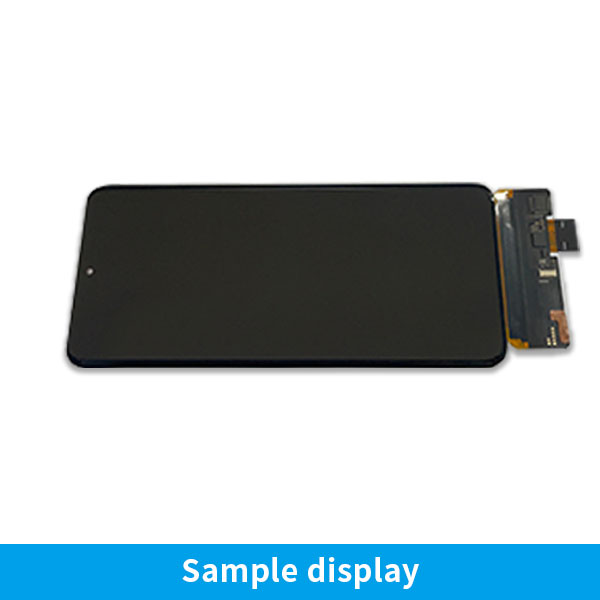

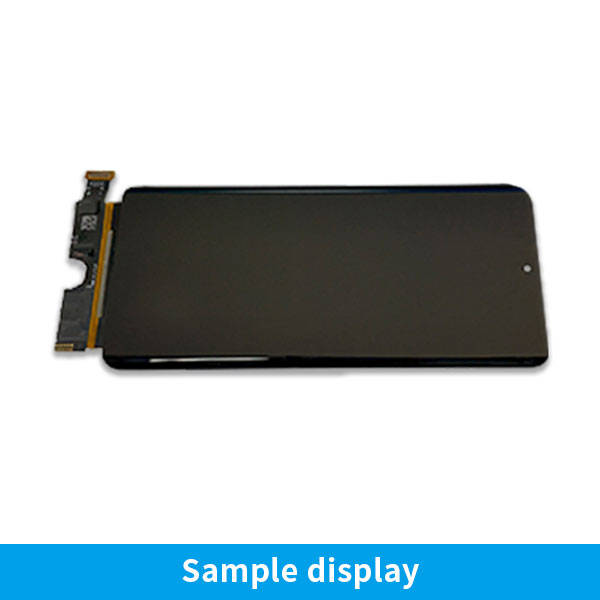

M39 scope of application: 1.Flexible OLED straight screen lamination 2.Flexible OLED curved screen lamination 3.Curved OLED return to modify the screen lamination |
||
