Adopt CCD vision single camera alignment, alignment accuracy within ±0.05mm.
Fitting capacity 100~120pcs per hour, easy to switch models.
Simple operation, reduce the dependence on the old master.
One machine multi-purpose: OCA, rework screen, module screen, back paste, etc.
|
anufacturer: Lamione |
Model: LMY-D29 |
Lamination Size: below 7 inches |
|
Lamination precision: ±0.05mm |
Lamination capacity: 150~200pcs/h |
Lamination temperature: 25~60°C |
|
Lamination pressure: ≤0.55Mpa |
Recipe quantity: pre-stored 50 sets of alignment |
Formulation lamination mode: CCD pre-positioning + cylinder |
|
Equipment power: 2000W |
Machine weight: 320KG |
Equipment size: 1687*1000*750mm |
|

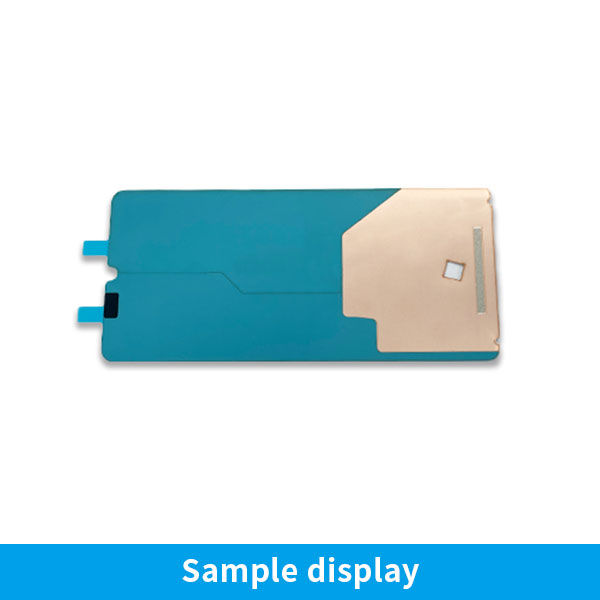

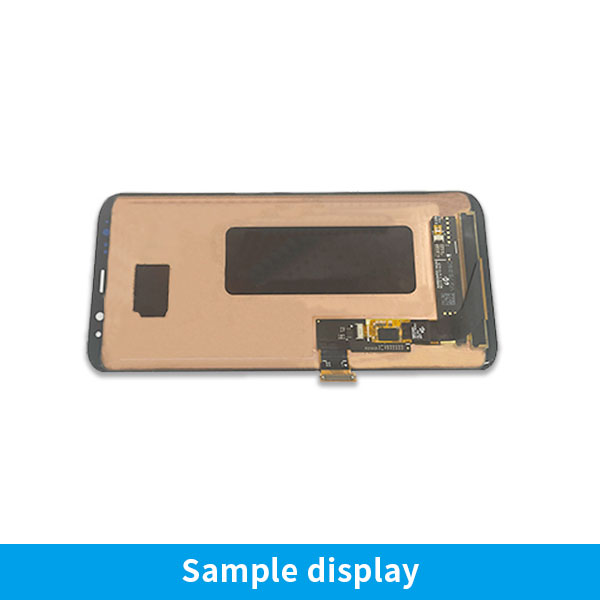

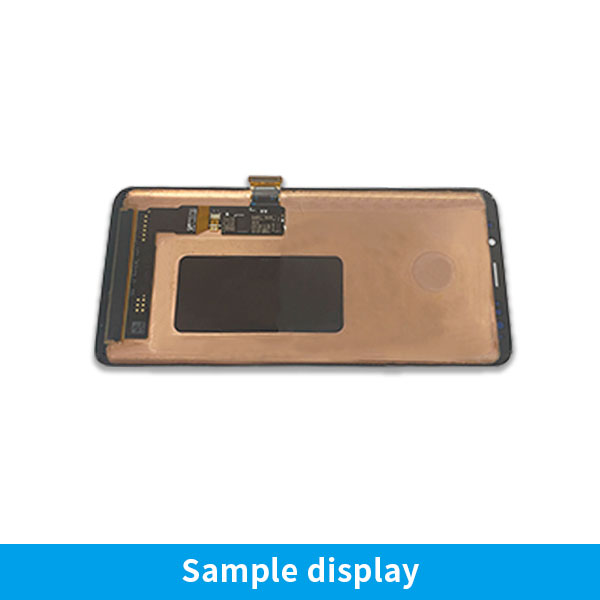

D29 scope of application: 1.Flexible OLED straight screen lamination 2.Flexible OLED curved screen lamination 3.Curved OLED return to modify the screen lamination |
||
