Double station operation, discharge and vacuum bonding at the same time, greatly improve production efficiency.
Four guide column fitting fixture, up and down displacement accuracy within ±0.05mm, Yadke large cylinder diameter cylinder, uniform fitting force, screen body without folds, high yield.
The cavity structure is sealed well, the humanized design reserves enough space for the wiring, and the import is great Rate vacuum pump, 5 seconds limit vacuum, fit free of bubbles, working efficiency is fast.
|
Manufacturer: Lamione |
Model: LMY-D39P |
Lamination Size: below 7 inches |
|
Lamination precision: ±0.07mm |
Lamination capacity: 120~140 pcs/h |
Lamination temperature: 25~60°C |
|
Lamination pressure: ≤0.55Mpa |
Recipe quantity: pre-stored 50 sets of alignment |
Formulation lamination mode: pneumatic cylinder |
|
Equipment power: 1500W |
Machine weight: 300KG |
Equipment size: 1240*660*1800mm |
|

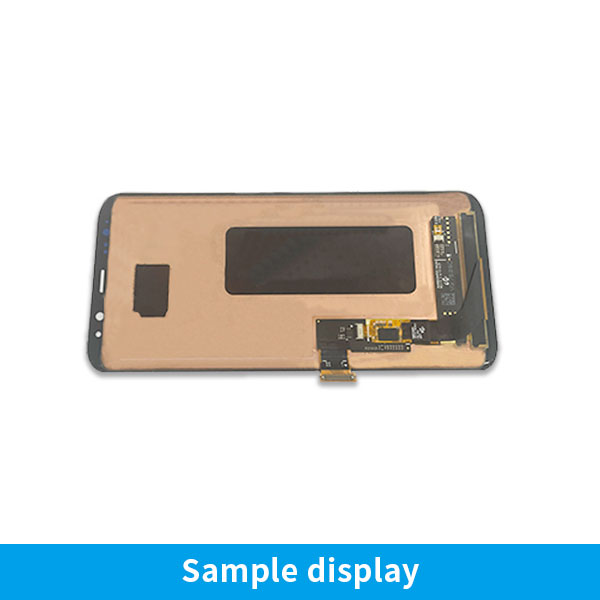

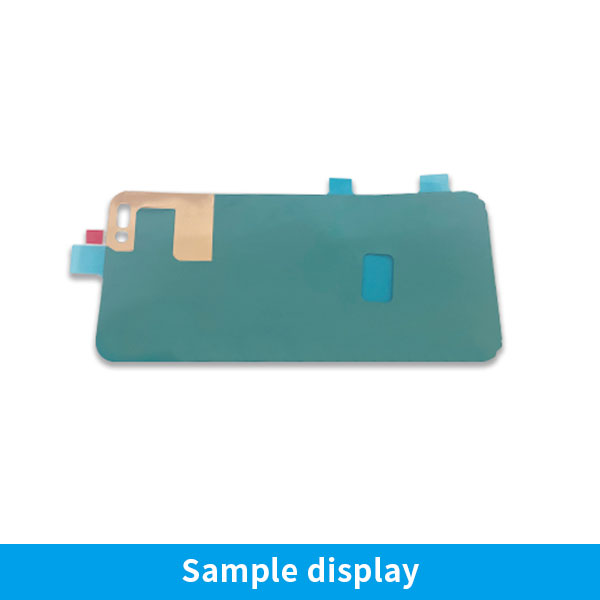

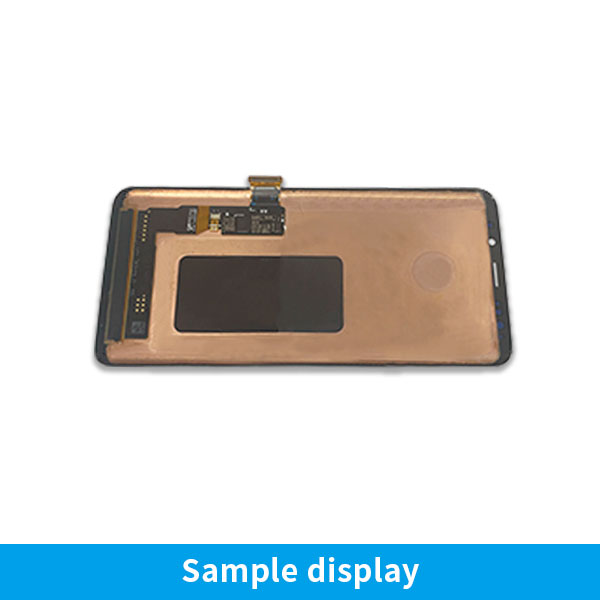

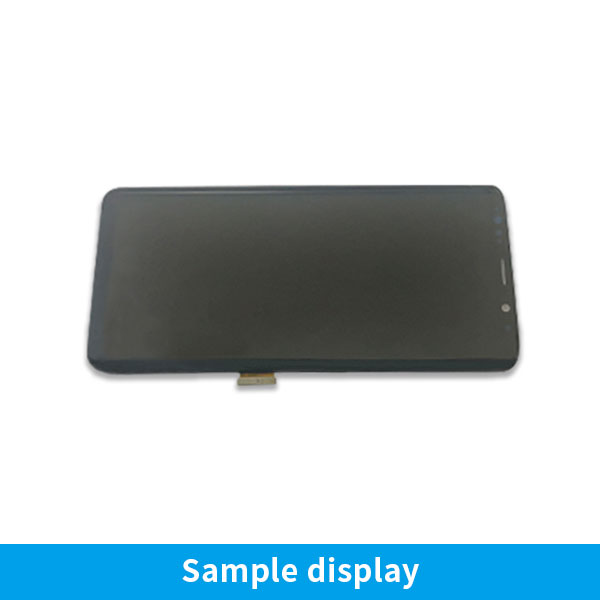

D39P scope of application: curved cover OCA lamination, module screen lamination, module back lamination, curved cell phone LCD screen repair lamination. |
||
