Turntable dual-station operation, loading and lamination in two ways, to enhance the production capacity.
Film automatic loading, automatic positioning, free hands to save labor.
Pre-stored 56 sets of lamination data, strong versatility.
lamination accuracy within ±0.1mm.
|
Manufacturer: Lamione |
Model: LMY-D59S |
Lamination Size: below 7 inches |
|
Lamination precision: ±0.1mm |
Lamination capacity: 120~150 pcs/h |
Lamination temperature: 25~60°C |
|
Lamination pressure: ≤0.6Mpa |
Recipe quantity: 56 pre-stored groups |
Formulation lamination mode: cylinder + airbag |
|
Equipment power: 1400W |
Machine weight: 550KG |
Equipment size: 1280*880*1800mm |
|

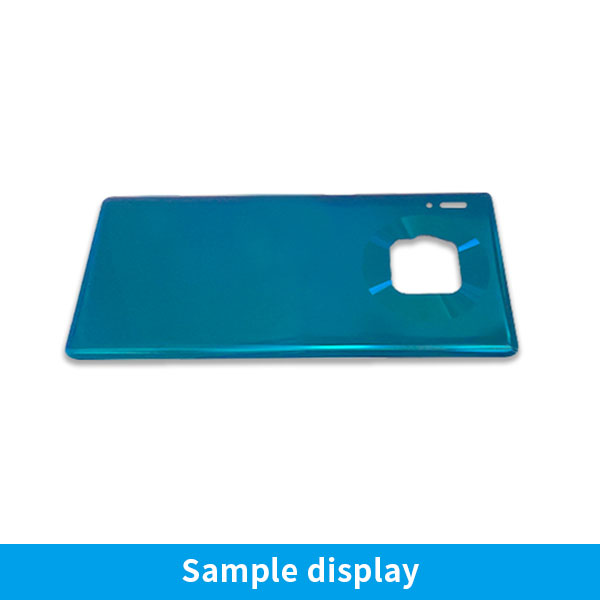

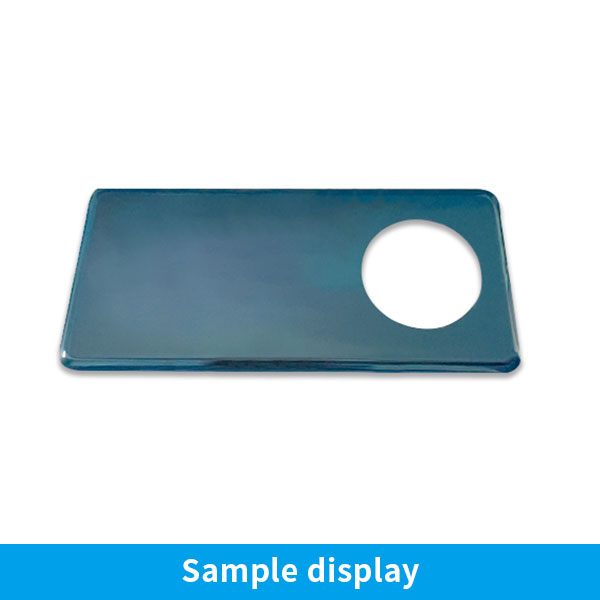

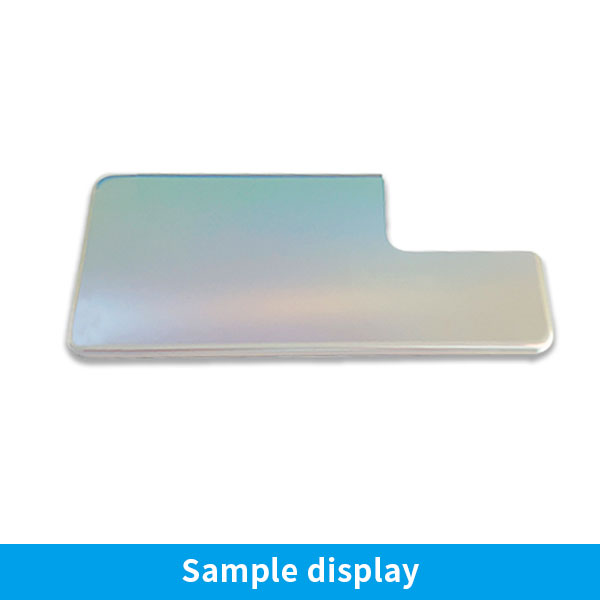

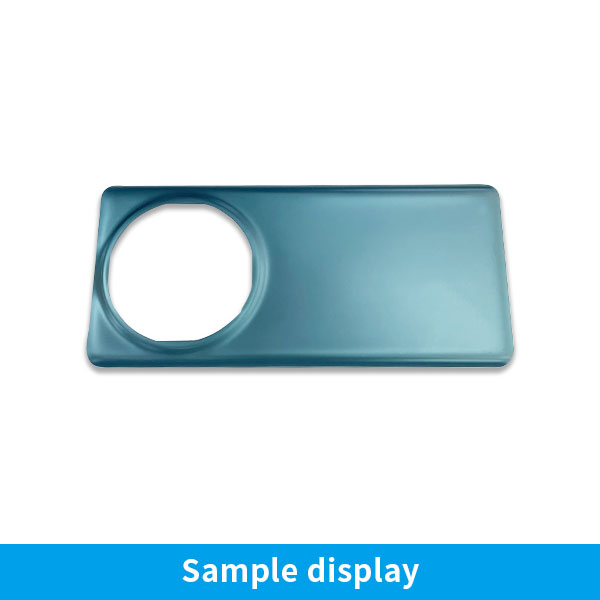

D59S scope of application: Samsung, Huawei, Xiaomi, Apple, OPPO and other series of back cover lamination |
||
